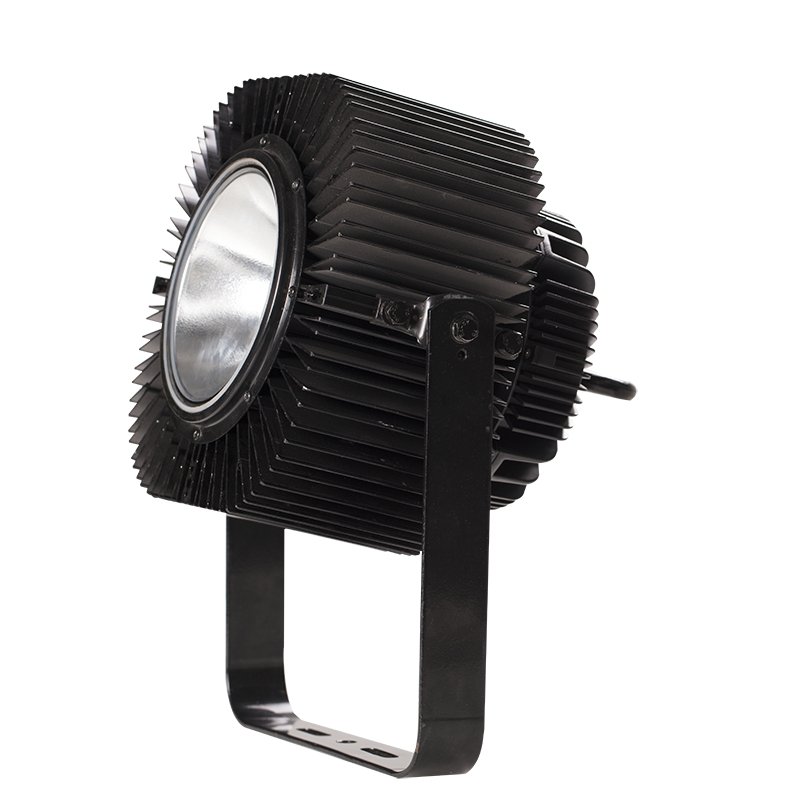

LB-IM320 series,1 modular 200-400W modularized Led high mast/flood/stadium light
1. power:200-400W.
2. Modulars:1
3. Using high-efficiency Flip-chip COB light source LED chips, the light efficiency of the lamp can reach 140 LM/W.
4. Beam angle options:25°/40°/60/90° multiple options。
5.IP65.
6.UL listed

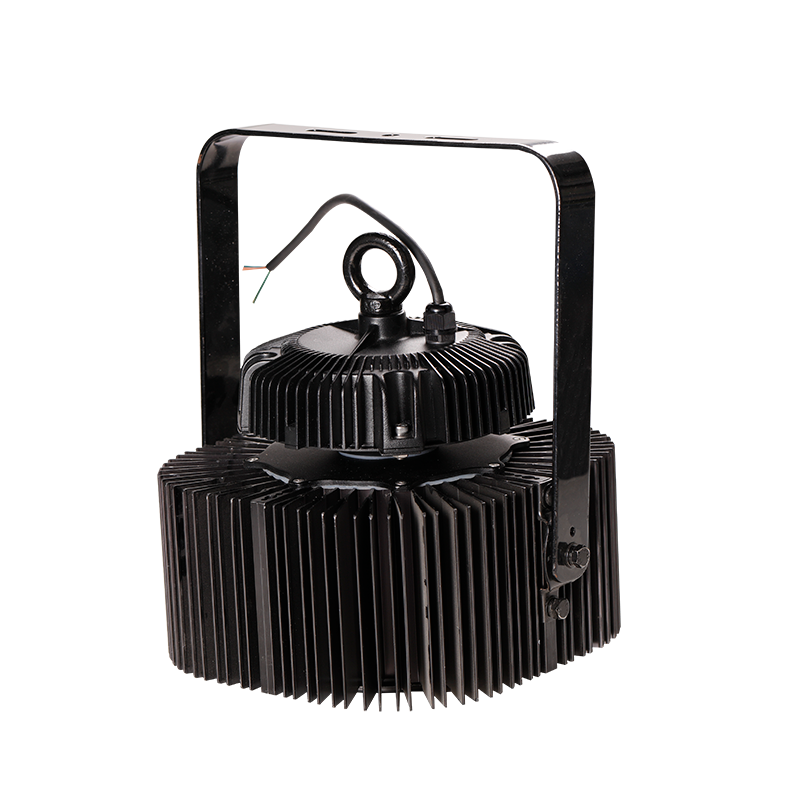

LB-IM320 series,1 modular 200-400W modularized Led high mast/flood/stadium light
1.high quality extruded aluminum sunflower pattern radiator, the heat dissipation system constructed by copper superconducting heat pipe, it makes this series of products specific and extraordinary heat transfer and heat dissipation effect, the product light decay is minimal; the lifetime is super long; and they are very solid and durable.
2. with small upwind area, strong typhoon resistance.
3. modularized from 1～3 rows and 1～2columns, total 1～6 modules, power ranged from 200～1200W(about 200W～400W/module);
4. built-in Professional Optical Design Aluminum Reflector, high optical efficiency reaches 95%.
5.flip-chip COB light source, long lifetime low decay.
6.Optical toughened glass lens, dust-proof, corrosion-proof, anti-oxidation, weather resistance, strong marine resistance, wear resistance; easy to maintain;
7.IP65.
8.UL listed.
9. quick details:
| Keyword: | modularized Led high mast/flood/stadium light | Model Number(UL): | LB-IM320-WAAA，LB-IM320-WBBB LB-IM320-WCCC，LB-IM320-WDDD |
||
| modules power range |
1 200～400W |
optical structure design | optical glass combine with built-in aluminium reflector |
||
| support customize | yes | main material of Housing | extruded 6063 aluminums heatsink | ||
| typical Input Voltage(V): | AC100～240V. 50/60HZ | power factor | ＞0.95 | ||
| Driver Brand: | Meanwell/sosun/lightingbest/others | Extra function optional /Smart Functions: |
Dimming/DALl /emergency lighting/ motion sensor/ZIGBEE intelligent control |
||
| Place of Origin: | China | product Brand: | lightingbest or customize | ||
| LED Chip Brand: | citizen/Bridgelux/SANAN/others | Luminous Efficiency(lm/w): | max150LM/W （when CCT6000K） | ||
| LED type | flip-chip COB | Beam angle: | 30°/60°/120°options | ||
| Color Temperature(CCT): | 3000k-6500k optional | CRI (Ra>): | 70～90 optional | ||
| lifetime(Hours) | 50000 | Warranty | 1～5 Years | ||
| certificate | CE、Rohs、UL | IP Rating: | IP65 Waterproof | ||
| Working Temperature （℃）: storage temperature（℃）: |
-35℃～+85℃ -30℃～+50℃ |
Application: | high temperature area, Factory, Square, Parking Lot, advertising lighting, Garden, Public place, Exhibition Hall, stadium etc. | ||
| packing (mm) | 350x350x425 | N.W./G.W. (KG) | 9.5/10 | ||
10.more details pls download the product specification.
