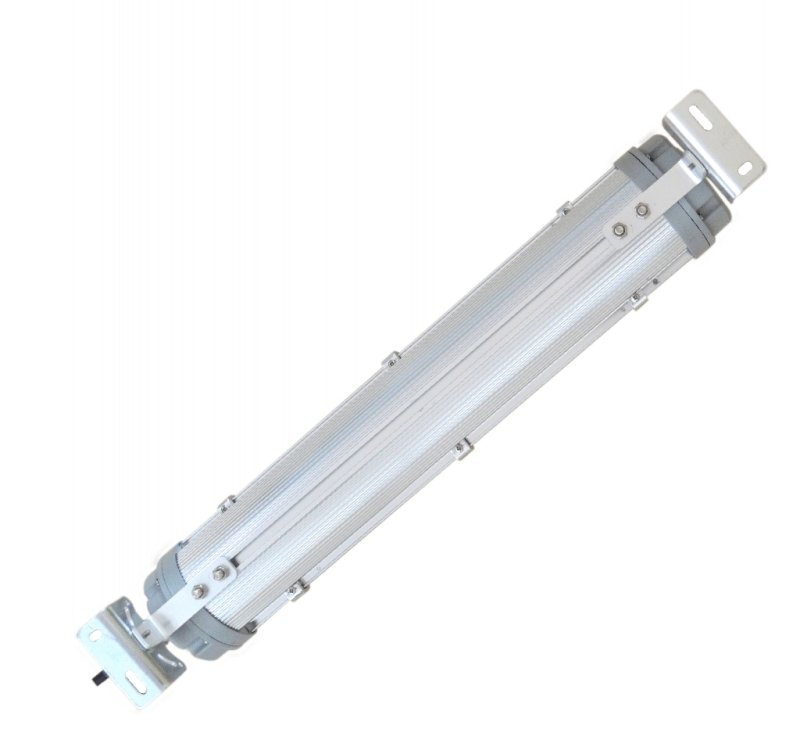

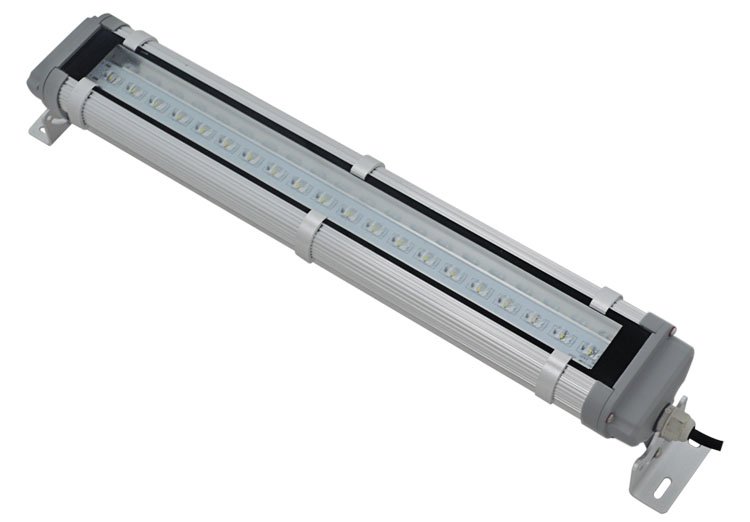

LB-WM085 series,600mm 24～48W Led wall washer lights/led linear light/machine light/walkway light
1. power:24~48W.
2. length:600mm or customized.
3.heatsink was made of 6063 aluminum, ADC12 endcover
4.SMD5050/3030/2835、CREE/XTE etc., the light efficiency of the lamp can reach 160 LM/W.
5. a variety of angles of lens to be available
6.IP68.
LB-WM085 series,600mm 24～48W Led wall washer lights/led linear light/machine light/walkway light
1.IP68structure waterproof design, the heatsink adopts the high quality extruded 6063 aluminums, Its length can be cut from 0.3m～1.5M or according to customer’s request, the end cover adopts the high-quality aluminum alloy （ADC12） die casting, the ultra-transparency toughened glass, fine heat dissipation effect and the waterproof structure design, the product is beautiful, solid and durable.
2. light source has a variety of options: SMD5050/3030/2835、CREE/XTE etc., and a variety of angles of lens to be available.
3. it is widely use as machine work lights, wall washer, walkway lights.
4.IP68.
5. quick data:
| Keyword: | LED machine work lights LED wall washer LED walkway lights |
Working Temperature(℃): | 35～60 | ||
| Model Number: | LB-WM085-W***-L*** | storage temperature | -30℃～+50℃ | ||
| power length |
24～48W 0.6M or customized |
main material of Housing | Die-cast of Aluminum and glass lens | ||
| power factor | ＞0.95 | IP Rating: | IP68 Waterproof | ||
| Color Temperature(CCT): | 3000k-6500k optional | Place of Origin: | China | ||
| LED type | SMD3030/SMD2835 | product Brand: | lightingbest or customize | ||
| LED Chip Brand: | cree/philips/osram/others | Application: | Tunnel,advertising lighting, wall washer, machine work light, walkway light etc. | ||
| Luminous Efficiency(lm/w): | max160LM/W(when CCT6000K) | Warranty | 3-Year | ||
| Extra function optional /Smart Functions: |
dimmable,RGB,emergency | CCT availble | 3000K/4000K/5000K/5700K/6500K | ||
| support customize | yes | Beam angle: | 15°/30°/60°/100° | ||
| CRI (Ra>): | 70～90 optional | Driver Brand: | sosun/lightingbest/others | ||
| Input Voltage(V): | AC100～277V/50/60HZ | certificate | CE、Rohs | ||
| packing size(mm) | 120*100*620 | N.W./G.W. (kg) | 1.8/2.2 | ||
6. more details pls download the product spec.
