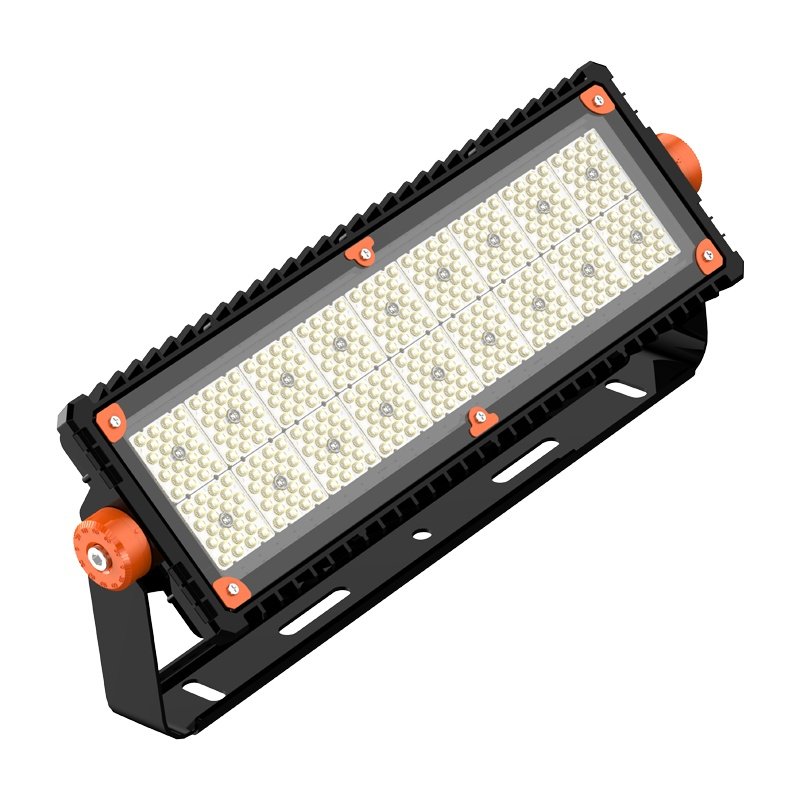

1 modular 200-300W LED flood, high mast,stadium lights, LB-DM500 series
1. power:200-300W.
2. Modulars:1
3. Using high-efficiency 3030 LED chips, the light efficiency of the lamp can reach 160 LM/W.
4. Beam angle options:25°/40°/60/90° multiple options。
5.IP65.
6.UL listed
1 modular 200-300W LED flood, high mast,stadium lights, LB-DM500 series
1. modularized from 1～4, power ranged from 200～1200W.
2. high light efficiency SMD 3030 light source, light efficiency up to 160 LM/W.

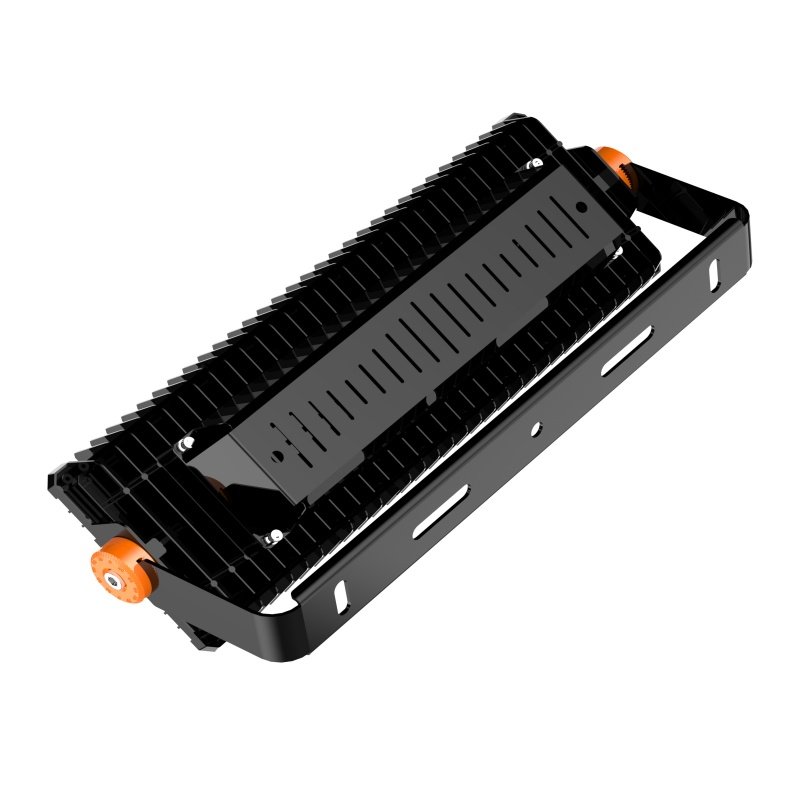

3. high-quality die-cast aluminium shell, excellent heat transfer and heat dissipation effect, the product light decay is very small, it is solid 、durable and long lifetime;
4. Optical outdoor PC lens, beam angle has 25°/40°/60/90° multiple options.
5. IP65.
6.UL listed
7. quick details:
| Keyword: | Modularized LED flood/highmast/stadium lights |
Model Number: | LB-DM500-WAAA,LB-DM500-WBBB | ||
| modules power range |
1 200～300W |
main material of Housing | ADC12 Die-cast heatsink combine with UV resistance PC lens, |
||
| support customize | yes | optical structure design | UV resistance PC lens | ||
| Input Voltage(V): | AC100～240V/50/60HZ | power factor | ＞0.95 | ||
| Driver Brand: | Meanwell/sosun/lightingbest/others | Extra function optional /Smart Functions: |
Dimming/DALl /emergency lighting/ motion sensor/ZIGBEE intelligent control |
||
| Place of Origin: | China | product Brand: | lightingbest or customized | ||
| LED Chip Brand: | cree/philips/osram/others | Luminous Efficiency(lm/w): | max180LM/W(when CCT6000K) | ||
| LED type | SMD2835/SMD3030 | Beam angle: | 15°/30°/45°/60°/90° | ||
| Color Temperature(CCT): | 3000k-6500k optional | CRI (Ra>): | 70～90 optional | ||
| lifetime(Hours) | 50000 | Warranty | 3~5 Years | ||
| certificate | CE、Rohs、 | IP Rating: | IP65 Waterproof | ||
| Working Temperature(℃): | -35℃～+60℃ | storage temperature | -30℃～+70℃ | ||
| packing (mm) | 505*350*165 | N.W./G.W.(KG) | 4.6/5.6 | ||
8.more details pls download the product specification.
