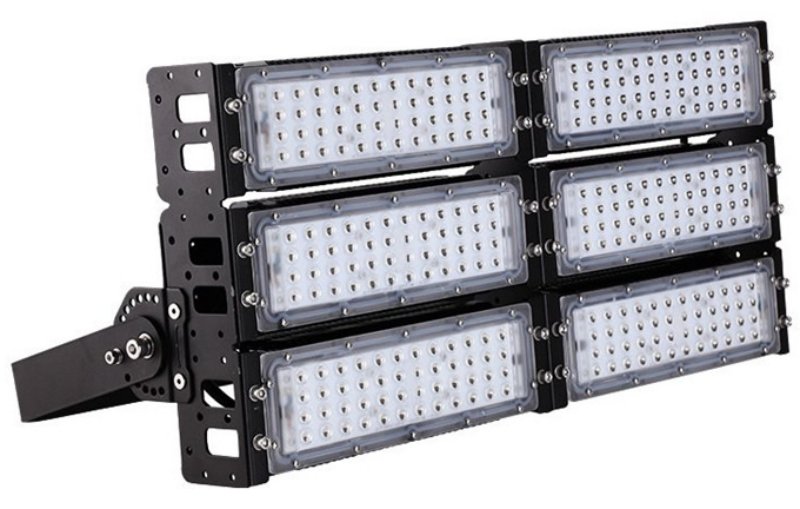

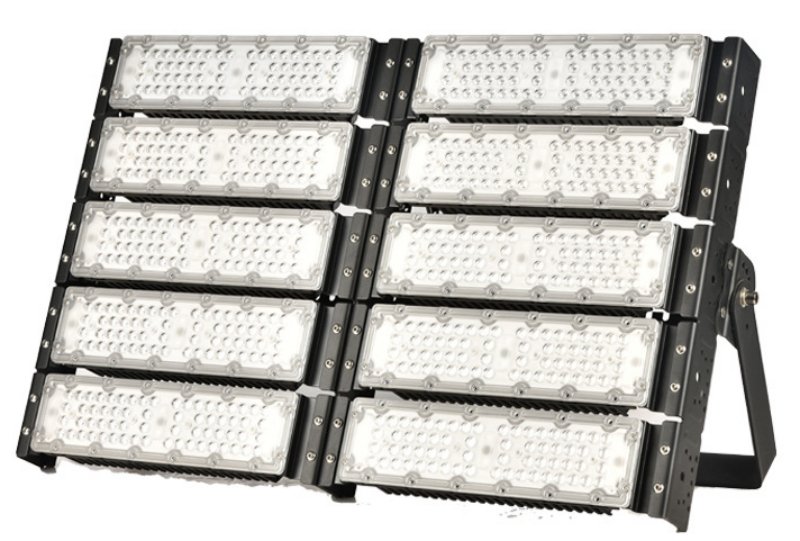

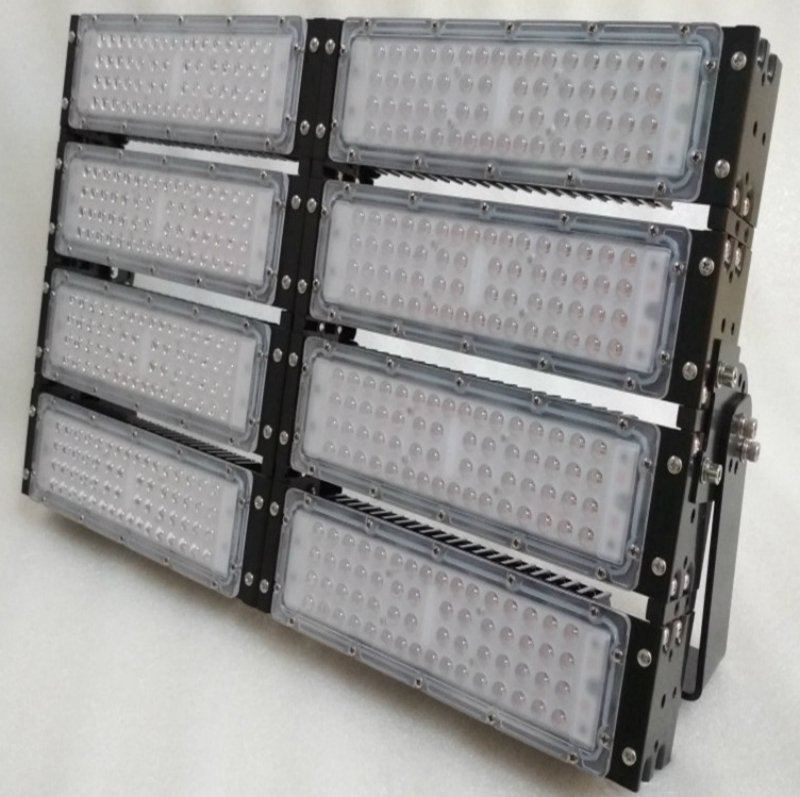

muti-modulars,1-12 modulars 50-600W LED flood Light, LB-IM160 series
1. power:50-600W.
2. Modulars:1-12
3. Using high-efficiency 3030 LED chips, the light efficiency of the lamp can reach 160 LM/W.
4. Beam angle options:30°/60 °/90 °/60 °*90°/75 °*140 °。
5.IP65.
6.UL listed。
muti-modulars,1-12 modulars 50-600W LED flood Light, LB-IM160 series
1. modularized from 1～12 modules, power ranged from 50～600W.
2. high light efficiency SMD 3030 light source, light efficiency up to 160 LM/W.
3. heatsink is made of high quality extruded 6063 aviation aluminum, good heat transfer and heat dissipation effect, the product light decay is very small, it is solid 、durable and long lifetime.
4. Optical outdoor PC lens, Beam angle options:30°/60 °/90 °/60 °*90°/75 °*140 °。
5.Ip65.
6.UL listed
7. quick details:
| Keyword: | Modularized LED flood light | Model Number: | LB-IM160-WXXX | ||
| modules power range |
1～12 modules 50～600W (50W for single module) |
material of heatsink | extruded 6063 aluminum | ||
| support customize | yes | optical structure design | UV resistance PC lens | ||
| typical Input Voltage(V): | AC100～240V. 50/60HZ | power factor | ＞0.95 | ||
| Driver Brand: | Meanwell/sosun/lightingbest/others | Extra function optional /Smart Functions: |
Dimming/DALI/emergency lighting/ motion sensor/ZIGBEE intelligent control |
||
| Place of Origin: | China | product Brand: | lightingbest or customize | ||
| LED Chip Brand: | Cree/Philips/Osram/others | Luminous Efficiency(lm/w): | max160LM/W(when CCT6000K) | ||
| LED type | SMD3030 | Beam angle: | 60°、 90°、 70°*150° | ||
| Color Temperature(CCT): | 2700k-6500k optional | CRI (Ra>): | 70～90 optional | ||
| lifetime(Hours) | 50000 | Warranty | 3 Years | ||
| certificate | CE、Rohs、UL | IP Rating: | IP65 Waterproof | ||
| Working Temperature(℃): storage temperature(℃): |
-35℃～+60℃ -30℃～+50℃ |
Application: | Factory, Square, Parking Lot, advertising lighting, Garden, Public place, Exhibition hall, stadium tunnel etc. | ||
| packing (mm) | 1 module 2 modules 3 modules 4 modules 5 modules 6 modules 2*3=6 modules 2*4=8 modules 2*5=10 modules 2*6=12 modules |
375*100*160 375*185*160 375*270*160 375*360*175 375*455*175 375*540*175 365*520*150 660*360*210 660*440*210 660*440*210 |
N.W./G.W.(KG) | 1 module 2 modules 3 modules 4 modules 5 modules 6 modules 2*3=6 modules 2*4=8 modules 2*5=10 modules 2*6=12 modules |
1.8/2.1 2.7/3.1 3.6/4.1 4.6/5.2 5.4/6.2 6.4/7.2 6.6/7.4 8.8/9.5 11/12 13.2/14.3 |
8.more details pls download the product specification.
