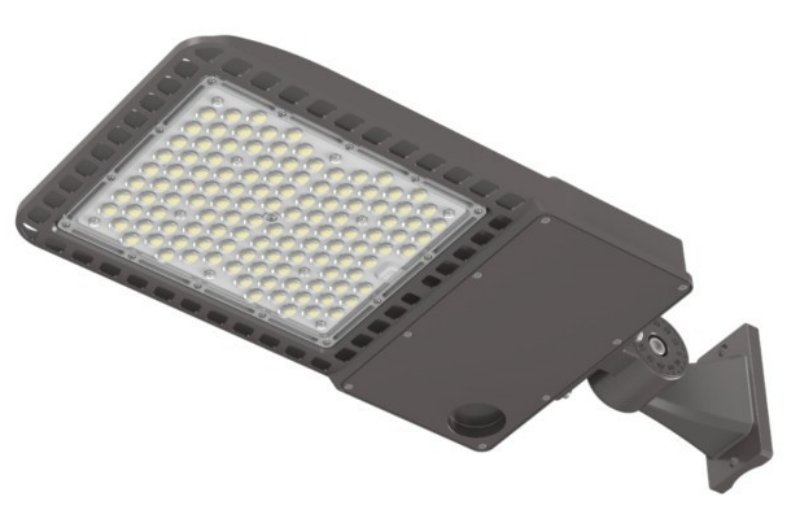

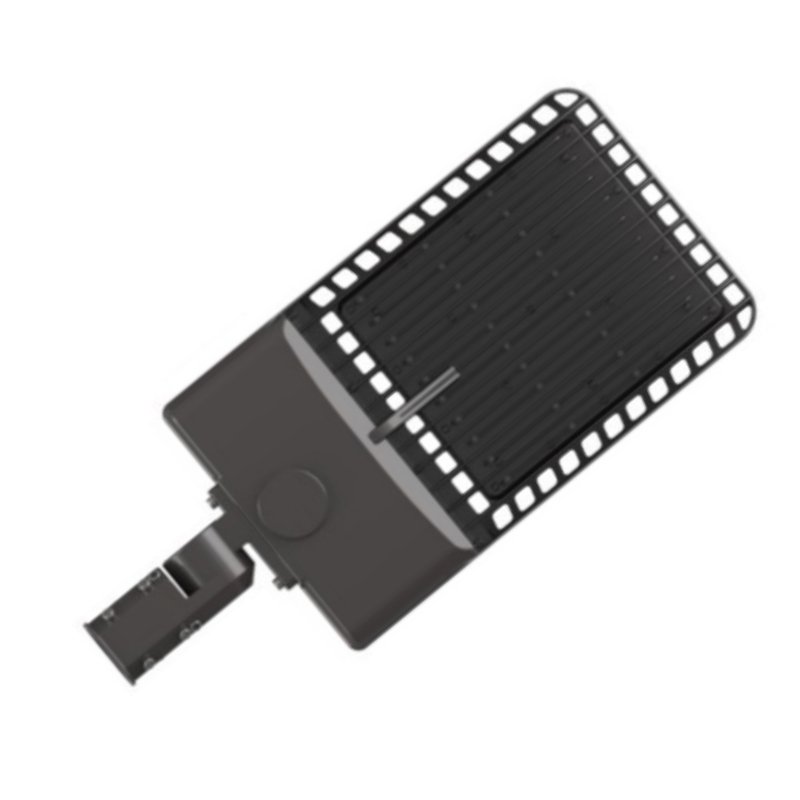

LB-RS5303-W300 300W LED streetlight/LED shoebox light
1.products power:300.
2.ADC12 aluminum alloy die-casting heatsink.
3. High luminous efficiency SMD3030 light source, with a high luminous efficiency of up to 160lm/W.
4. Beam angle:30°/60°/90°, TYPE-3, TYPE-4.
5.IP66.
6.UL listed.
LB-RS5303-W300 300W LED streetlight/LED shoebox light
1. High quality aluminum alloy die-casting heatsink，total 3 difference size, excellent heat dissipation effect, and low product light decay;
2.power range:100-300W.
3. Optical UV resistant, PC lens.
4. Light source type: SMD3030，light efficiency up to 160 LM/W；
5. Beam angle:30°/60°/90°, TYPE-3, TYPE-4.
6.IP65.
7.UL listed.
8. quick details:
| Keyword: | muti-models LED street light | Model Number(UL): | LB-RS530-WAAA, LB-RS5301-W300 | ||
| models | big | Warranty | 3～5 Years | ||
| power | 300W | optical structure design | PC lens | ||
| support customize | yes | main material of Housing | ADC12 Die-cast heatsink combine with UV resistance PC lens, |
||
| typical Input Voltage(V): | AC100～240V. 50/60HZ | power factor | ＞0.95 | ||
| Driver Brand: | Meanwell/sosun/lightingbest/others | Extra function optional /Smart Functions: |
Dimming/DALI /emergency lighting/ motion sensor/ZIGBEE intelligent control |
||
| LED Chips | Cree/Philips/Osram/others | product Brand: | lightingbest or customize | ||
| LED type | SMD3030 | Luminous Efficiency(lm/w): | max180LM/W(when CCT6000K) | ||
| Color Temperature （CCT）: | 3000k-6500k optional | Beam angle: | 80*150° | ||
| lifetime(Hours) | 50000 | CRI (Ra>): | 70～90 optional | ||
| certificate | CE、Rohs、UL | IP Rating: | IP65 Waterproof | ||
| Working Temperature(℃): storage temperature(℃): |
-35℃～+60℃ -30℃～+50℃ |
Application: | street, Square,Parking Lot, advertising lighting, Garden, Public place, etc. | ||
| packing(mm) | 755*360*130 | N.W./G.W.(KG) | 5.5/6.3 | ||
9.more details pls download the product specification.
