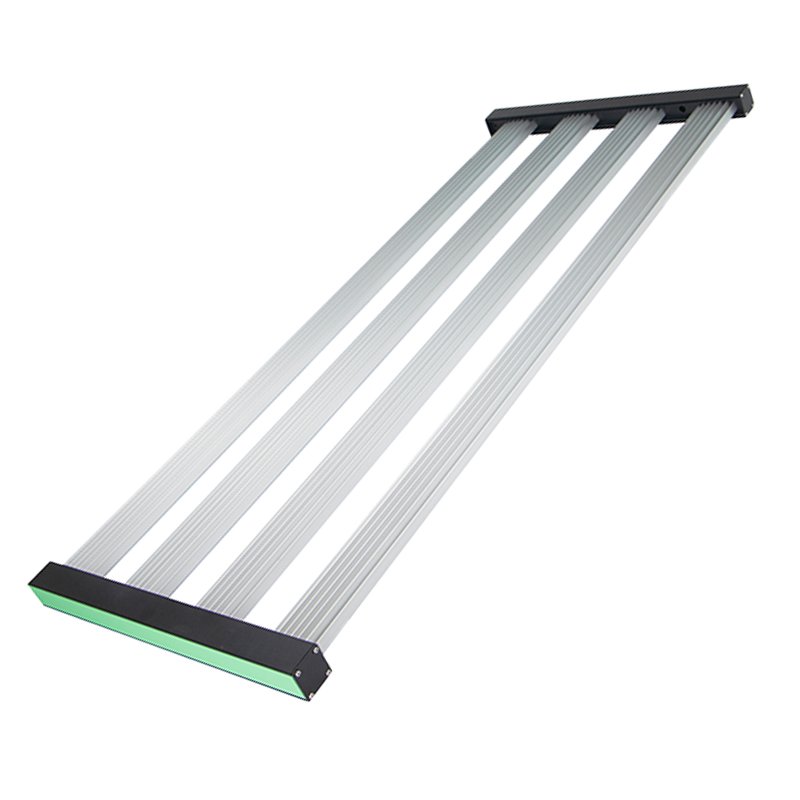

4 bars, LB-IM2504, LED Full Spectrum spider bar UV IR Plant Growing light
1.product name: LED Full Spectrum spider bar UV IR Plant Growing light,
2.model No.:LB-IM2504
3. power:300-400W.
4. Modulars:4 bars
5.IP65.
6.UL listed
4 bars, LB-IM2504, LED Full Spectrum spider bar UV IR Plant Growing light
1. high-quality aluminum extruded heatsink, excellent heat dissipation effect, solid and durable products.
2. Use Samsung 301B/301H and Osram 660nm LEDs, ultra-high PPFD, perfectly replace HPS 600W /1000W/2000W.
3. modularize from 2～12 bars, power ranged from 160～1200W.
4. Dimmable and power adjustable functions for different plants growing stages application.
5. IP65 waterproof design, be suitable in any environment.
6. UL listed.
7. quick details:
| Keyword: | LED Full Spectrum spider bar UV IR Plant Growing Lamp | modules power range |
2～12 bars 160～1200W(about 80～100W/module) |
||
| Model Number: | LB-IM250-WAAA-Y | main material of Housing | extruded 6063 aluminum heatsink | ||
| support customize | yes | optical structure design | optical silicon glued | ||
| typical Input Voltage(V): | AC100～240V. 50/60HZ | power factor | ＞0.95 | ||
| Driver Brand: | Meanwell/sosun/lightingbest/others | Extra function optional /Smart Functions: |
Dimming/DALl /emergency lighting/ motion sensor/ZIGBEE intelligent control |
||
| Place of Origin: | China | product Brand: | lightingbest or customize | ||
| LED Chip Brand: | Samsung/Osram/others | Luminous Efficacy(μmol/J): | 2.8 | ||
| LED type | 301B /301H/SMD3030 | Beam angle: | 120° | ||
| Color Temperature(CCT): | (Full Spectrum, red/blue ratio available or Customize) | CRI (Ra>): | 70～90 optional | ||
| lifetime(Hours) | 50000 | Warranty | 3～5 Years | ||
| certificate | CE、Rohs、UL | IP Rating: | IP65 Waterproof | ||
| Working Temperature(℃): storage temperature(℃): |
-35℃～+60℃ -30℃～+50℃ |
Application: | Greenhouse, Seedling, Hydroponics, Horticultural, BLOOM, VEG | ||
| packing size（cm） of partial models |
6 bars 8 bars 10 bars 12 bars |
116*65*14 116*65*14 116*65*14 116*65*14 |
N.W./G.W.（kg） of partial models |
6 bars 8 bars 10 bars 12 bars |
10.1/11 11/12 11.9/13 12.8/14 |
8. for more information, pls download the product spec.
