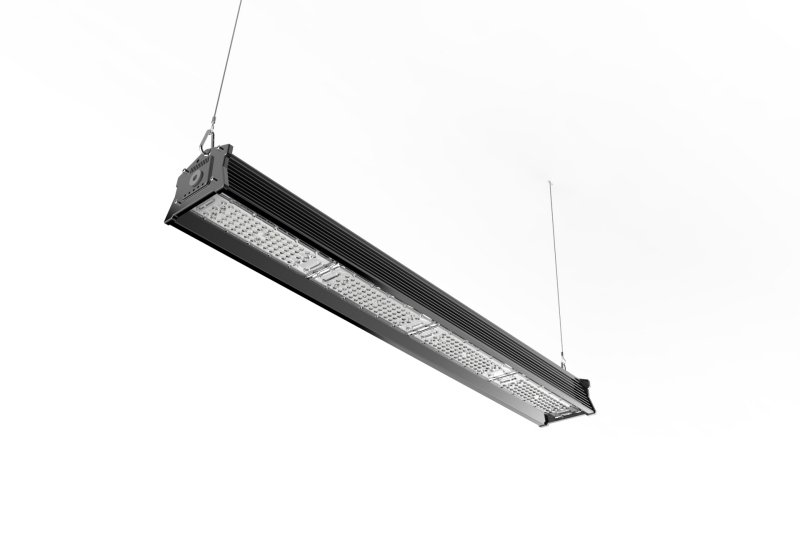

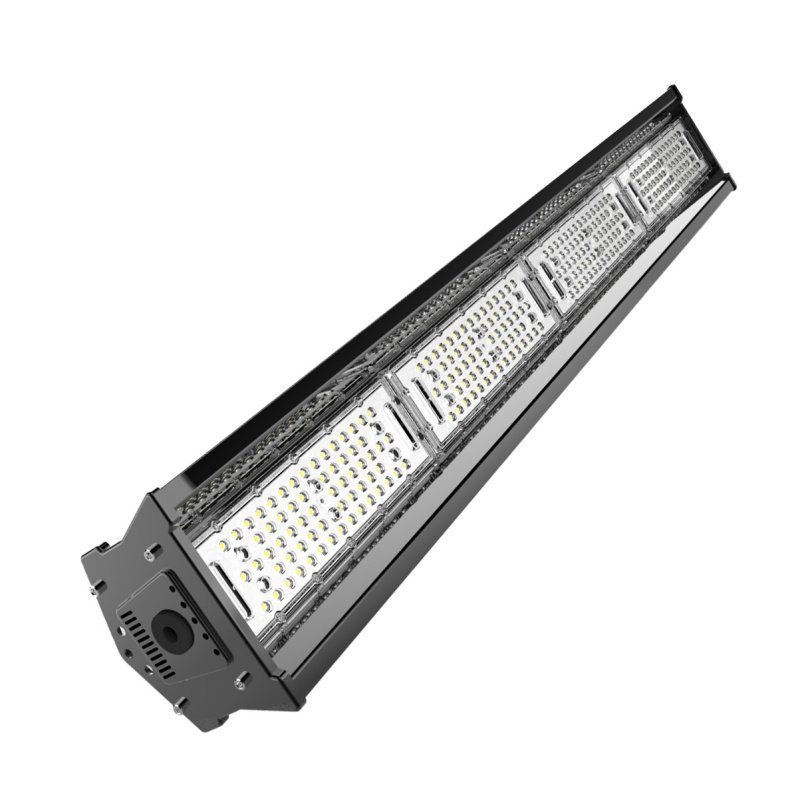

4 modulars 200W~300W LED Linear High Bay Light
1. power:150~240W.
2. Modulars:4
3. Using high-efficiency 3030 LED chips, the light efficiency of the lamp can reach 160 LM/W.
4. Beam angle options:30°/60 °/90 °/60 °*90°/75 °*140 °。
5.IP65.
6. DLC and UL certification
4 modulars 200W~300W LED Linear High Bay Light
1. The heat sink is made of high-quality 6063 aviation aluminum extrusion molding, which has good heat transfer and heat dissipation effects， and it has the minimum light attenuation, is sturdy and durable, and has a long service life.
2. Modular design, The product length can be customized according to customers’ requirements, consisting of 1-5 rows (or even more) and 1-2 columns (or even more), with a total of 1-10 modules (or more) and The power coverage range is very wide, up to 50-800W (single-mode group power is about 50-80W)
3. This product can be equipped with motion sensors and emergency power supply.
4. Using high-efficiency 3030 LED chips, the light efficiency of the lamp can reach 160 LM/W;
5. Beam angle options: 30 °/60 °/90 °/60 * 90 °/75 * 140 °;
6.IP65.
7. DLC and UL certification
9. quick details:
| Keyword: | LED linear High Bay Light | product item: | LB-LM130-W150-4 | ||
| power range(W) | 200～300W | main material of Housing | extruded 6063 aluminum heatsink | ||
| support customize | yes | optical structure design | UV resistance PC lens | ||
| typical Input Voltage(V): | AC100～240V. 50/60HZ | power factor | ＞0.95 | ||
| Driver Brand: | Meanwell/sosun/lightingbest/others | Extra function optional /Smart Functions: |
Dimming/DALI /emergency lighting/ motion sensor/ZIGBEE intelligent control |
||
| Place of Origin: | China | product Brand: | lightingbest or customize | ||
| LED Chip Brand: | Cree/Philips/Osram/others | Luminous Efficiency(lm/w): | max200LM/W(when CCT6000K) | ||
| LED type | SMD3030 | Beam angle: | 60°/90°/120°/30°*70°/60°*120°/70°*140° options | ||
| Color Temperature(CCT): | 3000k-6500k optional | CRI (Ra>): | 70～90 optional | ||
| lifetime(Hours) | 50000 | Warranty | 5 Years | ||
| certificate | CE、Rohs、UL | IP Rating: | IP65 Waterproof | ||
| Working Temperature(℃): storage temperature(℃): |
-35℃～+60℃ -30℃～+50℃ |
Application: | warehouse, hallway, passage, market, workshop,Exhibition hall etc. | ||
| packing(mm) | 1030x180x130 | N.W./G.W.(KG) | 5.3/6.3 | ||
10.more details pls download the product specification.
