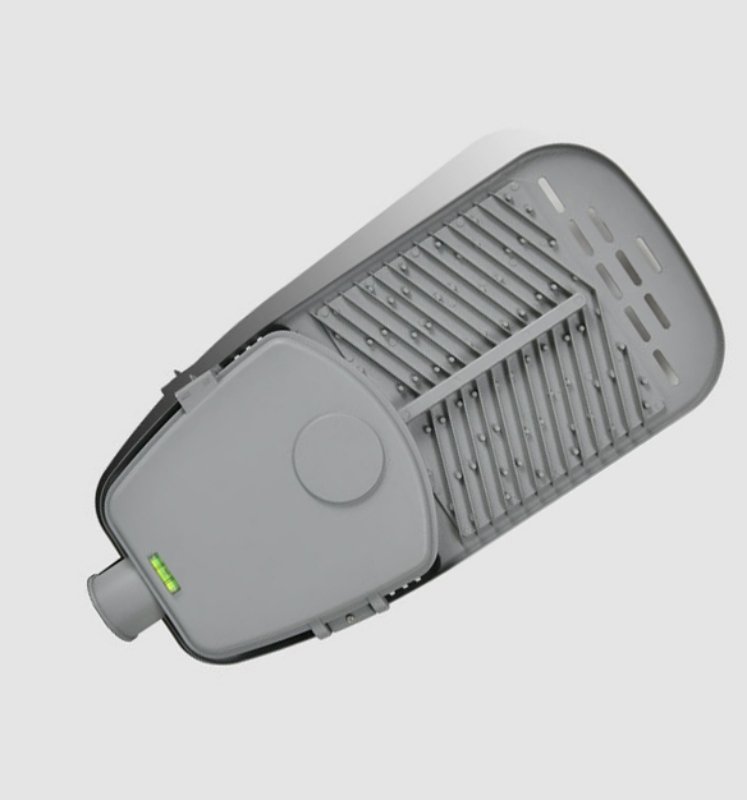

LB-RS600-W200,150-200W LED streetlight light, LED road light

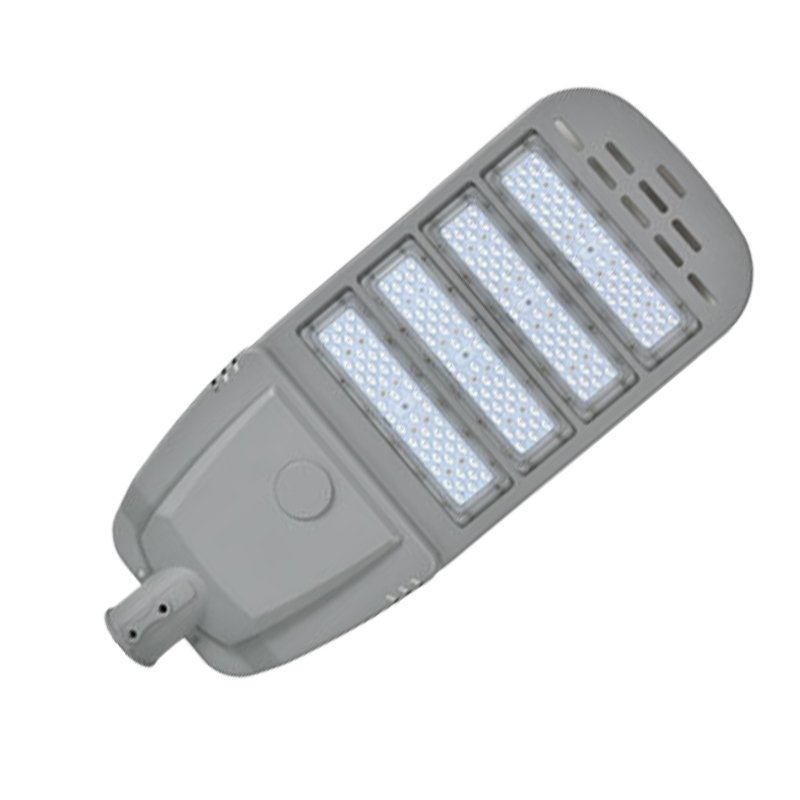

1. one of multiple models of LED streetlight, LB-RS6004(LB-RS600 series)
2.product power:150-200W.
3.ADC12aluminum alloy die-casting heatsink.
4. High luminous efficiency SMD3030 light source, with a high luminous efficiency of up to 160lm/W.
5. Beam angle:70°X140° or 75°X165°。
6.IP66.
7.UL listed.
LB-RS600-W200,150-200W LED streetlight light, LED road light

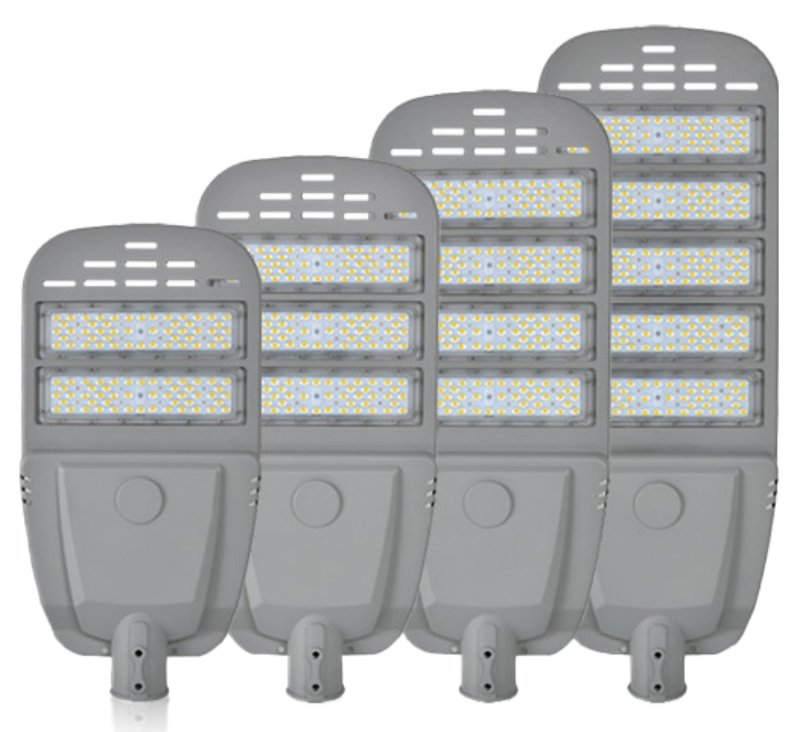

1. High quality aluminum alloy die-casting heatsink， total 4 difference size, power range:50-300W;
2.excellent heat dissipation effect, and low product light decay.
3. Optical UV resistant, PC lens beam angle:70°X140° or 75°X165°;
4. Light source type: SMD 3030/5050 light source, light efficiency up to 180 LM/W.
5.Ip65.
6.certification: CE, Rohs, UL listed.
7. quick details:
| Keyword: | multi-models LED street light | Model Number(UL): | LB-RS600-WAAA | ||
| models | 3rd | Warranty | 3～5 Years | ||
| power range | 150～200W | optical structure design | PC lens | ||
| support customize | yes | main material of Housing | ADC12 Die-cast heatsink combine with UV resistance PC lens, |
||
| typical Input Voltage(V): | AC100～240V. 50/60HZ | power factor | ＞0.95 | ||
| Driver Brand: | Meanwell/sosun/lightingbest/others | Extra function optional /Smart Functions: |
Dimming/DALI /emergency lighting/ motion sensor/ZIGBEE intelligent control |
||
| LED Chips | Cree/Philips/Osram/others | product Brand: | lightingbest or customize | ||
| LED type | SMD3030 | Luminous Efficiency(lm/w): | max180LM/W(when CCT6000K) | ||
| Color Temperature （CCT）: | 3000k-6500k optional | Beam angle: | 70*140°or 75*160° | ||
| lifetime(Hours) | 50000 | CRI (Ra>): | 70～90 optional | ||
| certificate | CE、Rohs、UL | IP Rating: | IP65 Waterproof | ||
| Working Temperature(℃): storage temperature(℃): |
-35℃～+60℃ -30℃～+50℃ |
Application: | street, Square, Parking Lot, advertising lighting, Garden, Public place, etc. | ||
| packing(mm) | refer parameters table | N.W./G.W.(KG) | refer parameters table | ||
8.main parameters:
| SUB-Model No. |
lamp Power (W) |
modules | N.W./G.W. (KG) |
Product size (mm) |
packing size (mm) |
pole size (Ømm) |
| LB-RS6002 | 100 | 2 | 2.6/3.2 | 585*300*100 | 605*320*130 | 60 |
| LB-RS6003 | 150 | 3 | 3.2/3.9 | 665*300*100 | 685*320*130 | 60 |
| LB-RS6004 | 200 | 4 | 3.6/4.3 | 745*300*100 | 765*320*130 | 60 |
| LB-RS6005 | 300 | 5 | 4.0/4.8 | 825*300*100 | 845*320*130 | 60 |
9.more details pls download the product specification.
