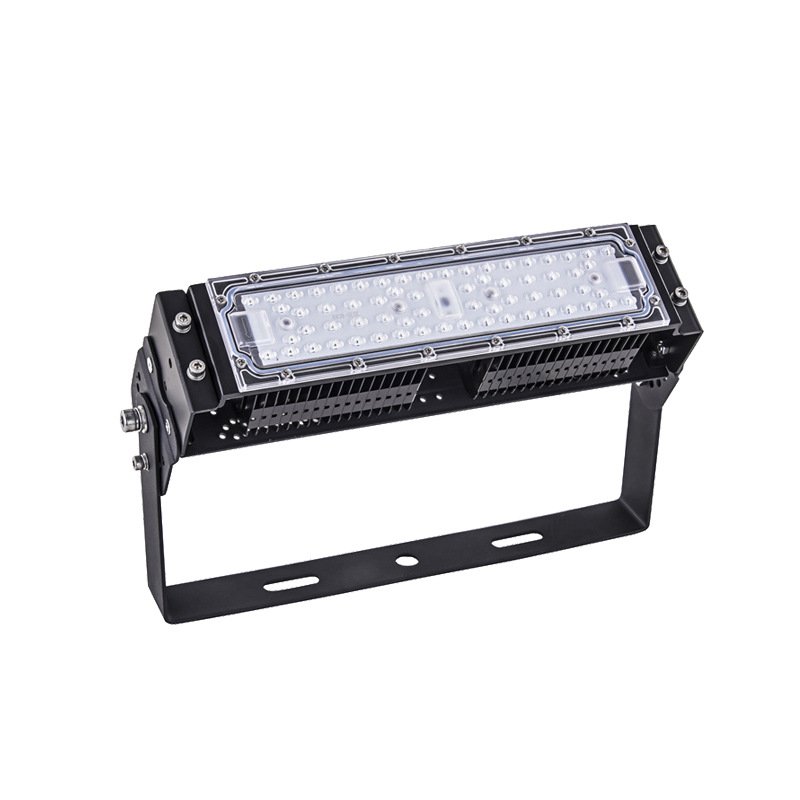

single modular,50W LED flood Light, LB-IM160-W050
1. power:50~60W.
2. Modulars:1
3. Using high-efficiency 3030 LED chips, the light efficiency of the lamp can reach 160 LM/W.
4. Beam angle options:30°/60 °/90 °/60 °*90°/75 °*140 °。
5.IP65.
6.UL listed。

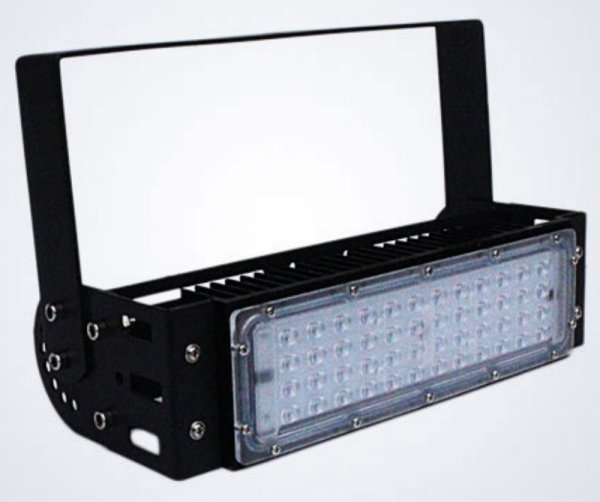

single modular,50W LED flood Light, LB-IM160-W050
1. modularized from 1～6 modules, power ranged from 50～300W.
2. high light efficiency SMD 3030 light source, light efficiency up to 160 LM/W.
3. heatsink is made of high quality extruded 6063 aviation aluminum , good heat transfer and heat dissipation effect, the product light decay is very small, it is solid 、durable and long lifetime.
4. Optical outdoor PC lens, Beam angle options:30°/60 °/90 °/60 °*90°/75 °*140 °。
5.Ip65.
6.UL listed
7. quick details:
| Keyword: | Modularized LED flood light | Model Number: | LB-IM160-WXXX | ||
| modules power range |
1 modules 50～60W |
material of heatsink | extruded 6063 aluminum | ||
| support customize | yes | optical structure design | UV resistance PC lens | ||
| typical Input Voltage(V): | AC100～240V. 50/60HZ | power factor | ＞0.95 | ||
| Driver Brand: | Meanwell/sosun/lightingbest/others | Extra function optional /Smart Functions: |
Dimming/DALI /emergency lighting/ motion sensor/ZIGBEE intelligent control |
||
| Place of Origin: | China | product Brand: | lightingbest or customize | ||
| LED Chip Brand: | Cree/Philips/Osram/others | Luminous Efficiency(lm/w): | max160LM/W （when CCT6000K） | ||
| LED type | SMD3030 | Beam angle: | 60°、 90°、 70°*150° | ||
| Color Temperature(CCT): | 2700k-6500k optional | CRI (Ra>): | 70～90 optional | ||
| lifetime(Hours) | 50000 | Warranty | 3 Years | ||
| certificate | CE、Rohs、UL | IP Rating: | IP65 Waterproof | ||
| Working temperature （℃）: storage temperature （℃）: |
-35℃～+60℃ -30℃～+50℃ |
Application: | Factory, Square, Parking Lot, advertising lighting, Garden, Public place, Exhibition Hall, stadium tunnel etc. | ||
| packing (mm) | 375*100*160 | N.W./G.W.(KG) | 1.8/2.1 | ||
8.more details pls download the product specification.
