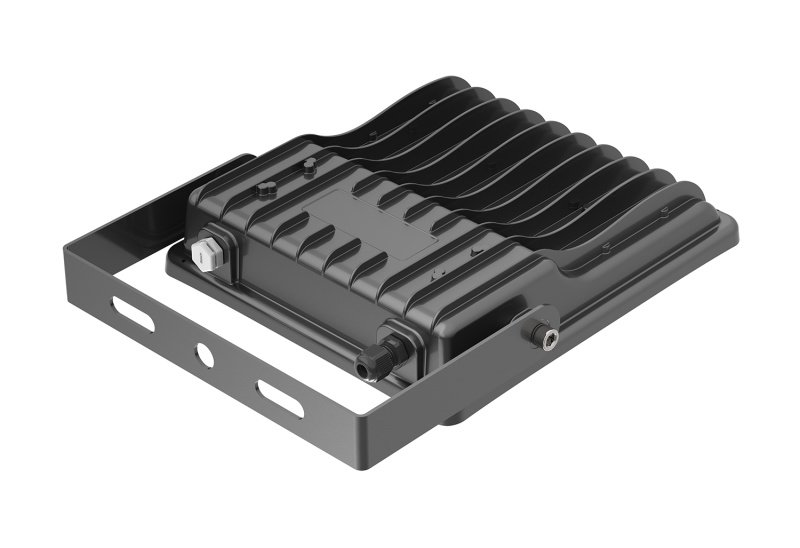

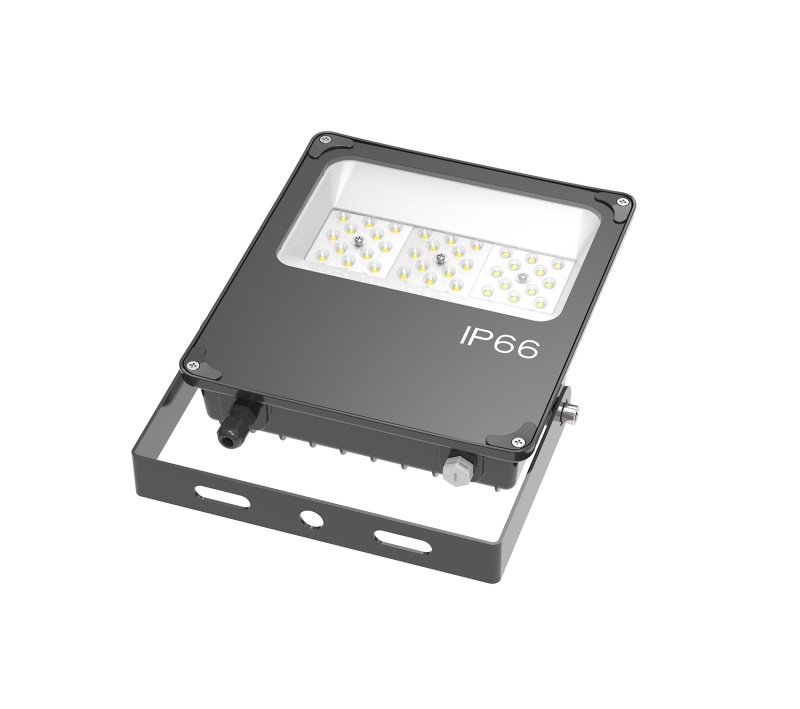

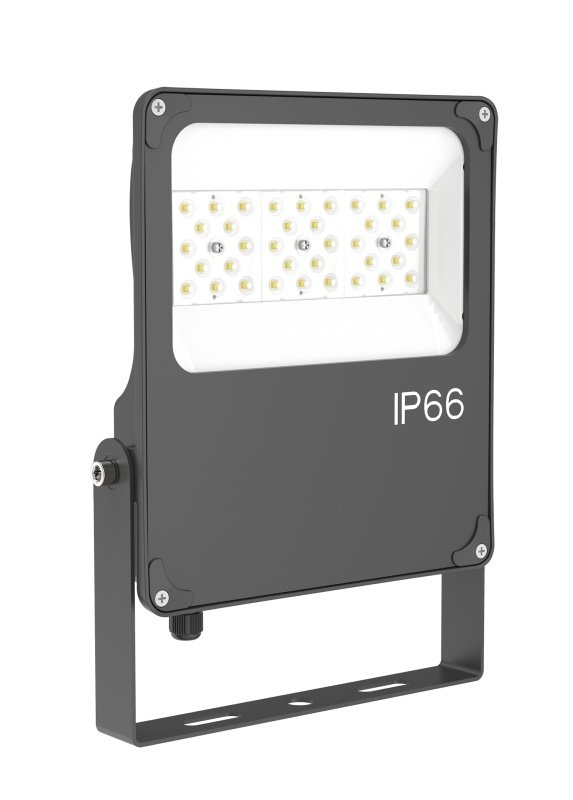

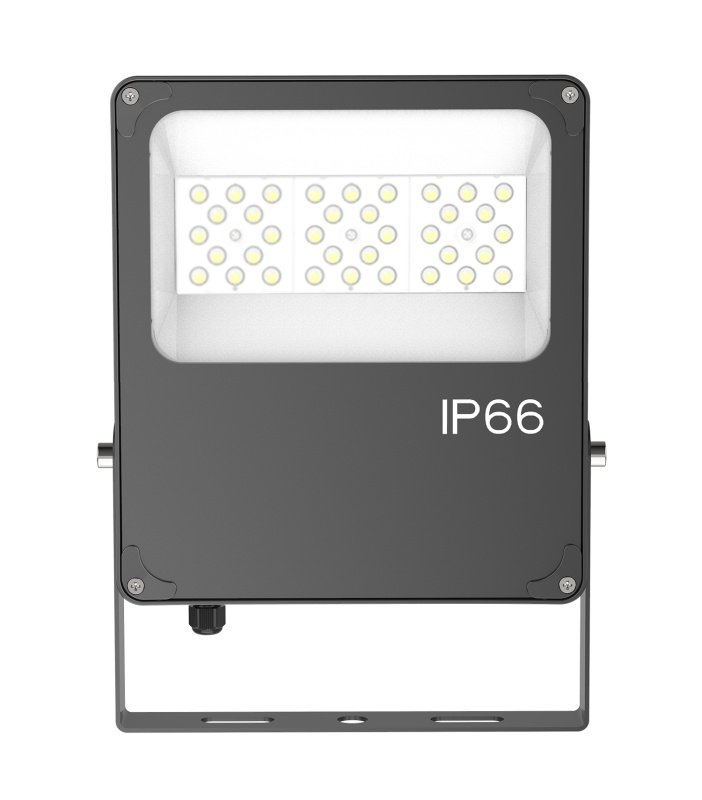

LB-FS350F 30W slim LED flood lights
1.products power:30W.
2.ADC12 aluminum alloy die-casting heatsink.
3. High luminous efficiency SMD3030 light source, with a high luminous efficiency of up to 160lm/W.
4. beam angle 7 °/15 °/30 °/60°/90 °/120 °/T2M/T3M available.
7.IP66.
LB-FS350F 30W slim LED flood lights
1.products power:30W.
2. Ultra-thin series floodlights, the biggest one of 8 different sizes.
3.ADC12 aluminum alloy die-casting molding, stylish and simple appearance, large heat dissipation area, good heat dissipation effect, low light attenuation, and long lifetime.
4. High temperature resistant tempered glass, housing surface is baked paint process, excellent corrosion resistance.
5. High luminous efficiency SMD3030 beads are used, with a high luminous efficiency of up to 160lm/W;
6. beam angle 7 °/15 °/30 °/60°/90 °/120 °/T2M/T3M
7.IP66.
8. UL certificated product.
9. quick details:
| power range | 30W | main material of Housing | ADC12 aluminum Die-cast housing | ||
| support customize | yes | optical structure design | toughened glass | ||
| typical Input Voltage(V): | AC100～240V. 50/60HZ | power factor | normally ＞0.95 | ||
| Driver Brand: | Meanwell/sosun/lighting best/others | Extra function optional /Smart Functions: |
Dimming/DALI /emergency lighting/ motion sensor/ZIGBEE intelligent control |
||
| Place of Origin: | China | product Brand: | lightingbest or customize | ||
| LED Chip Brand: | Cree/Philips/Osram/others | Luminous Efficiency(lm/w): | max160LM/W(when CCT6000K) | ||
| LED type | SMD2835/3030 | Beam angle: | 7°/15°/30°/60°/90° options | ||
| Color Temperature （CCT）: | 3000k-6500k optional | CRI (Ra>): | 70～90 optional | ||
| lifetime(Hours) | 50000 | Warranty | 3 Years | ||
| certificate | CE、Rohs、UL | IP Rating: | IP65 Waterproof | ||
| Working Temperature (℃): storage temperature (℃): |
-35℃～+60℃ -30℃～+75℃ |
Application: | Factory, Square, Parking Lot, advertising lighting, Garden, Public place, Exhibition Hall, stadium etc. | ||
| product/packing size(mm) | 283*220*52/296*226*60 | N.W./G.W.(kg) | 1.5/1.7(kg) | ||
10.more details pls download the product specification.
